EGR Valve Removal/Installation

Disconnect the negative battery terminal. (See REQUIRED PROCEDURE AFTER NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Remove the bolts and clips shown in the figure and remove the wiring harness bracket.

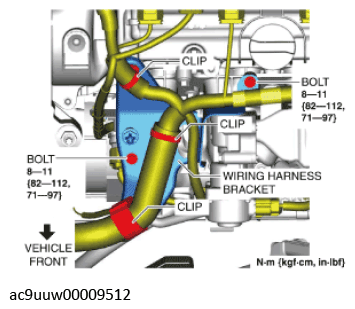

Fig 1: Wiring Harness Bracket Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.

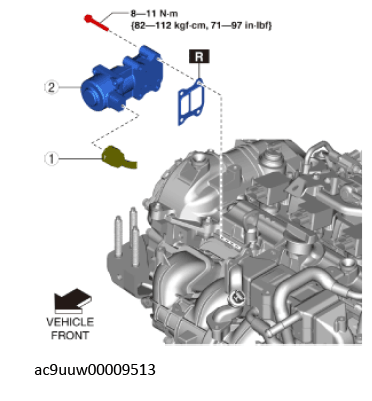

Fig 2: EGR Valve Components With Torque Specification
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 EGR valve connector

2 EGR valve
Install in the reverse order of removal.
