DTC B12BD-00: Rear Mount Camera Malfunction [360°View Monitor Control Module]: Notes
DTC B12BD:00 (360° VIEW MONITOR CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Rear mount camera malfunction |
| Detection condition |
- The 360°view monitor control module detects an input error from the rear mount camera.
|
| Fail-safe |
- Switches rear mount camera image to black screen
|
| Possible cause |
- 360° view monitor control module connector or terminal malfunction
- Rear mount camera connector or terminal malfunction

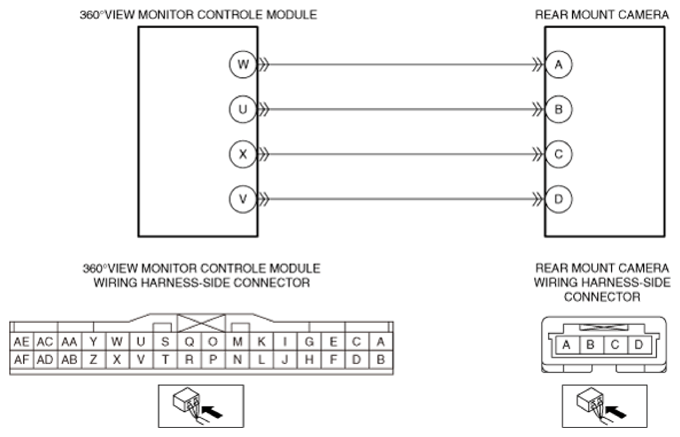

- Short to ground in wiring harness between the following terminals:
- 360° view monitor control module terminal W-Rear mount camera terminal A
- Short to power supply in wiring harness between the following terminals:
- 360° view monitor control module terminal W-Rear mount camera terminal A
- Open circuit in wiring harness between the following terminals:
- 360° view monitor control module terminal W-Rear mount camera terminal A
- Rear mount camera malfunction
- 360° view monitor control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
