Pm Sensor Removal/Installation: AWD: Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Install the bands. (See Band installation note .)
    G13119386Courtesy of MAZDA MOTORS CORP.
  2. Install the PM sensor using the SST.

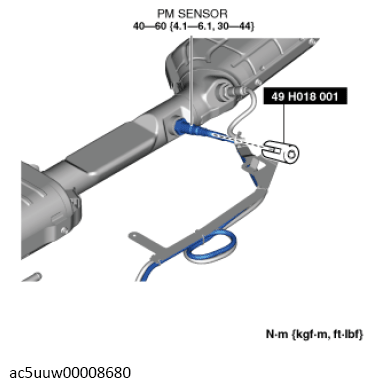

    Fig 1: PM Sensor Bolt With Torque Specification
    G13119387Courtesy of MAZDA MOTORS CORP.
  3. Install the clip.

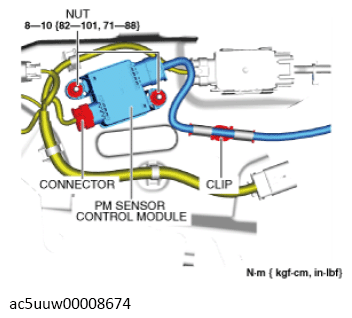

    Fig 2: PM Sensor Control Module, Connector, Clip And Nuts With Torque Specification
    G13119378Courtesy of MAZDA MOTORS CORP.
  4. Connect the connector.
  5. Install the PM sensor control module.
  6. Install the nuts.
  7. Connect the connector.

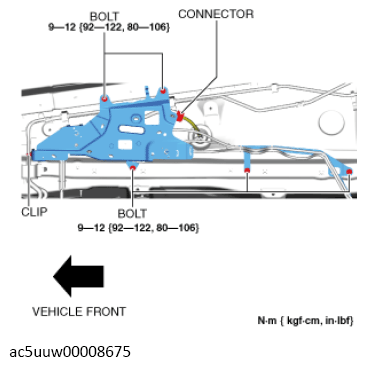

    Fig 3: Connector, Clip And Bolts With Torque Specification
    G13119379Courtesy of MAZDA MOTORS CORP.
  8. Install the bolts.
  9. Install the clip.
  10. Install the floor under cover (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  11. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
