Pm Sensor Removal/Installation: 2WD: Installation: Notes

WARNING: This page is about a different variant/trim than selected.

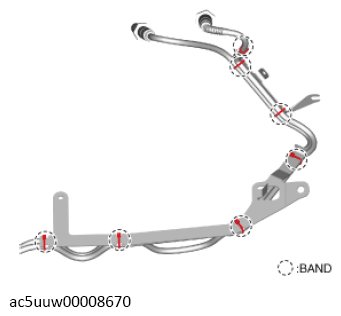

  1. Install the bands. (See BAND INSTALLATION NOTE .)
    G13119373Courtesy of MAZDA MOTORS CORP.

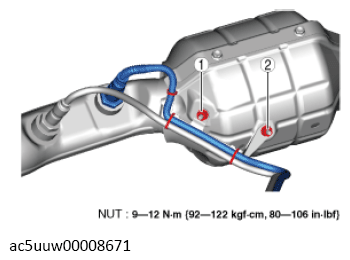

  2. Tighten the nuts in the order shown in the figure.
    Fig 1: SCR Converter Nuts With Torque Specification
    G13119374Courtesy of MAZDA MOTORS CORP.

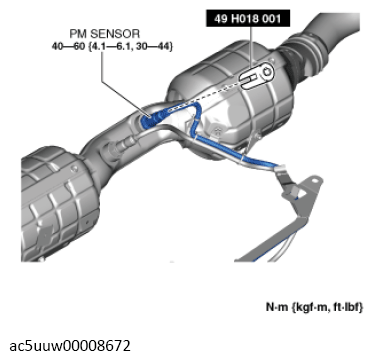

  3. Install the PM sensor using the SST.
    Fig 2: PM Sensor Bolt With Torque Specification
    G13119375Courtesy of MAZDA MOTORS CORP.

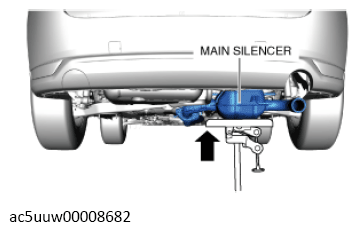

  4. Lift up the transmission jack slowly to a position allowing installation of the hanger rubber.
    G13119376Courtesy of MAZDA MOTORS CORP.

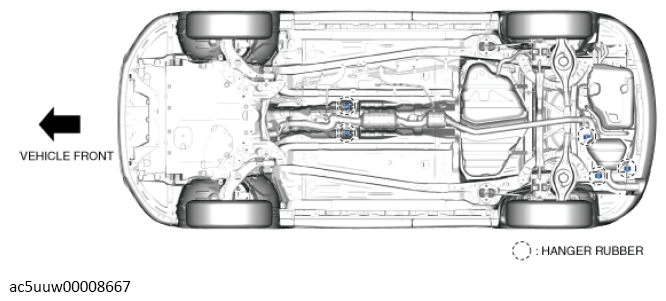

  5. Install the hanger rubber.
    G13119370Courtesy of MAZDA MOTORS CORP.
  6. Install the clip.
    Fig 3: PM Sensor Control Module, Clip, Connector And Nuts With Torque Specification
    G13119378Courtesy of MAZDA MOTORS CORP.
  7. Connect the connector.
  8. Install the PM sensor control module.
  9. Install the nuts.
  10. Connect the connector.
    Fig 4: Connector, Clip And Bolts With Torque Specification
    G13119379Courtesy of MAZDA MOTORS CORP.
  11. Install the bolts.
  12. Install the clip.
  13. Install the following parts:
    1. Tunnel member (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
    2. Brace bar (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
    3. Insulator (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
    4. Floor under cover (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  14. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
