Lower Case Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Replacement Part

Fuel main hose Quantity: 1 Location of use: Lower Case	Fuel return hose No. 1 Quantity: 1 Location of use: Lower Case	Fuel return hose No. 2 Quantity: 1 Location of use: Lower Case
Fuel return hose No. 3 Quantity: 1 Location of use: Lower Case	Fuel return hose No. 4 Quantity: 1 Location of use: Lower Case	-

WARNING:

Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the "FUEL LINE SAFETY PROCEDURE " to prevent the fuel from spraying.
- Fuel may cause irritation if it comes in contact with skin and eyes.
- If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.

A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching the vehicle body.

CAUTION:

If parts are exposed to the fuel, their function may be decreased or a fire may occur. Spread a rag to absorb any leaked fuel.
If fuel does not pass through the fuel filter, it could cause a fuel system malfunction. Therefore, do not install the fuel hoses (main and return side) in reverse. When installing the fuel hose, always refer to the "AFTER SERVICE PRECAUTION" and perform the "Fuel Hose Installation Procedure".

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Perform the "Fuel Line Safety Procedure" referring to the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
Disconnect the fuel feed pipe (lower case side). (See SUPPLY PUMP REMOVAL/INSTALLATION .)
Remove the fuel return pipe (fuel injector side) and cover. (See FUEL INJECTOR REMOVAL/INSTALLATION .)

Remove in the order shown in the figure.

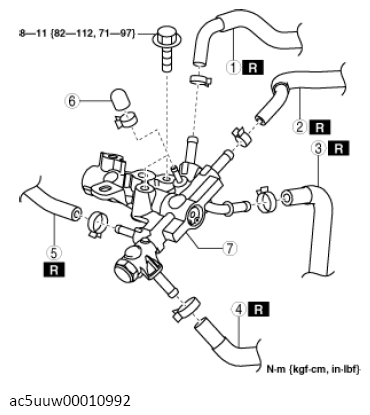

Fig 1: Removing/Installing Lower Case Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fuel main hose (See Fuel Main Hose and Fuel Return Hose No. 1 Installation Note .)
2	Fuel return hose No. 1 (See Fuel Main Hose and Fuel Return Hose No. 1 Installation Note .)
3	Fuel return hose No. 2 (See Fuel Return Hose No. 2 Installation Note .)
4	Fuel return hose No. 3 (See Fuel Return Hose No. 3 Installation Note .)
5	Fuel return hose No. 4 (See Fuel Return Hose No. 4 Installation Note .)
6	Plug (See Plug Installation Note .)
7	Lower case

Install in the reverse order of removal.
Perform the Fuel Hose Installation and Fuel Line Air Bleeding referring to the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)
