Fuel-Filler Pipe Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the "FUEL LINE SAFETY PROCEDURE " to prevent the fuel from spraying.
- Fuel may cause irritation if it comes in contact with skin and eyes.
- If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.
- A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching the vehicle body.
- Park the vehicle on a level surface.
- Perform the "Fuel Line Safety Procedure" referring to the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
- Drain the fuel. (See FUEL DRAINING PROCEDURE .)
- Open the fuel-filler lid.
- Remove the urea-filler cap. (See UREA-FILLER PIPE REMOVAL/INSTALLATION .)
- Remove in the order shown in the figure.
- Install in the reverse order of removal.
- Perform the fuel leakage inspection referring to "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)
Courtesy of MAZDA MOTORS CORP.

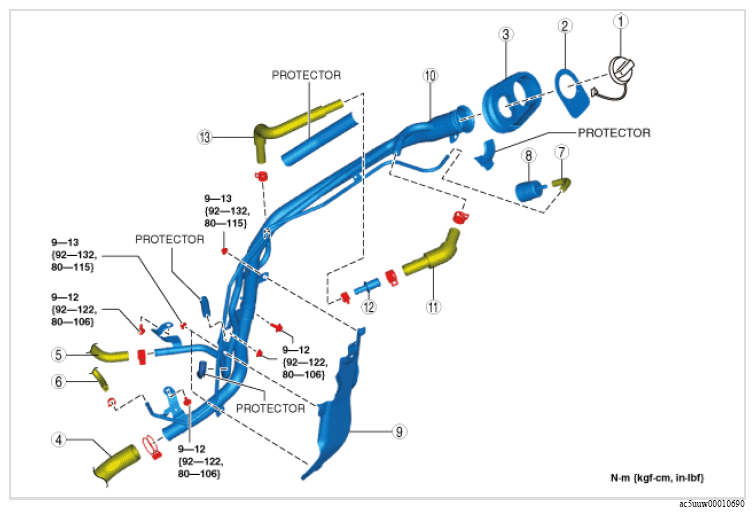

COMPONENT DESCRIPTION1 Fuel-filler cap 2 Plate 3 Dust cover
(See Dust Cover Removal Note .)4 Joint hose
(See Joint Hose Installation Note .)5 Breather hose
(See Breather Hose Installation Note .)6 Evaporative hose No. 1
(See Evaporative Hose No. 1 Installation Note .)7 Evaporative hose No. 2 8 Plug 9 Fuel-filler pipe protector 10 Fuel-filler pipe
(See Fuel-filler Pipe Removal Note .)
(See Fuel-filler Pipe Installation Note .)11 Evaporative hose No. 3 12 Joint 13 Evaporative hose No. 4
