PCM Removal/Installation
>>
PCM Bracket Installation Note
PCM Bracket Installation Note
WARNING:
This page is about a different variant/trim than selected.

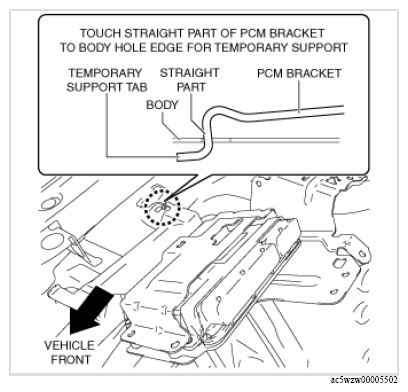

Install the PCM bracket as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
