Nut Installation Note
WARNING: This page is about a different variant/trim than selected.

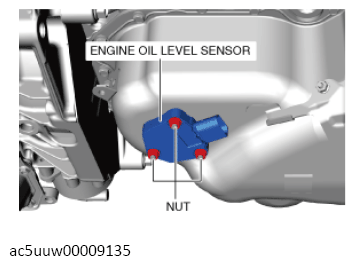

- Temporarily tighten the nuts.
 Courtesy of MAZDA MOTORS CORP.
|
Temporary tightening torque
2.0 N.m {20 kgf.cm, 18 in.lbf}
- Completely tighten the nuts.
Tightening torque
8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
