Def Quality Sensor Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the urea tank. (See UREA TANK REMOVAL/INSTALLATION .)

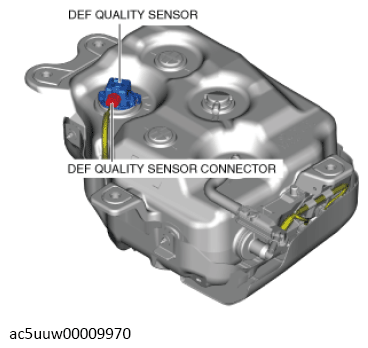

Disconnect the DEF quality sensor connector.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the DEF quality sensor O-ring is damaged, replace the O-ring.

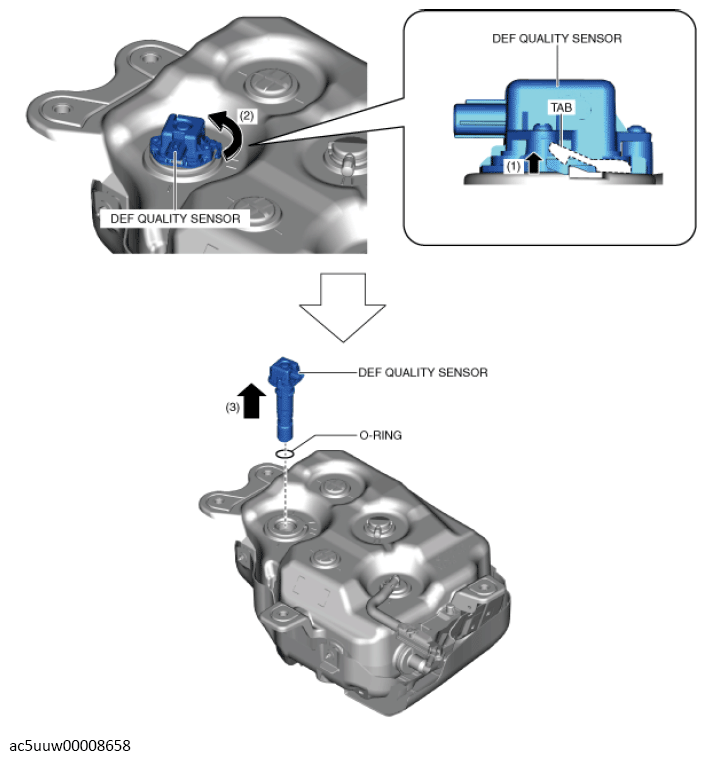

Remove in the order shown in the figure. (See DEF Quality Sensor Installation Note .)

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
