Except Engine Compartment: AWD

WARNING: This page is about a different variant/trim than selected.

Courtesy of MAZDA MOTORS CORP.

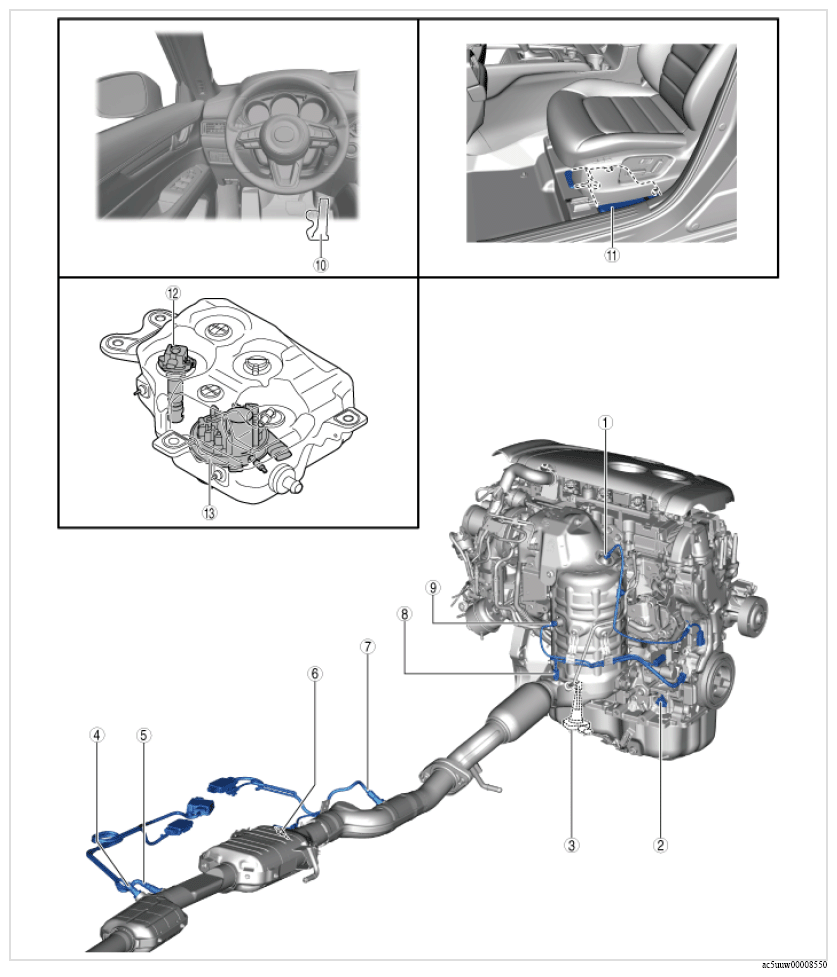

COMPONENT DESCRIPTION

1	Exhaust gas temperature sensor No. 2 (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION .) (See EXHAUST GAS TEMPERATURE SENSOR INSPECTION .)
2	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION .)
3	Engine oil level sensor (See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION .) (See ENGINE OIL LEVEL SENSOR INSPECTION .)
4	NOx sensor No. 2 (See NOx SENSOR REMOVAL/INSTALLATION .) (See NOx SENSOR INSPECTION .)
5	PM sensor (See PM SENSOR REMOVAL/INSTALLATION .) (See PM SENSOR INSPECTION .)
6	Exhaust gas temperature sensor No. 5 (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION .) (See EXHAUST GAS TEMPERATURE SENSOR INSPECTION .)
7	NOx sensor No. 1 (See NOx SENSOR REMOVAL/INSTALLATION .) (See NOx SENSOR INSPECTION .)
8	Exhaust gas temperature sensor No. 4 (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION .) (See EXHAUST GAS TEMPERATURE SENSOR INSPECTION .)
9	Exhaust gas temperature sensor No. 3 (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION .) (See EXHAUST GAS TEMPERATURE SENSOR INSPECTION .)
10	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION .) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION .)
11	Dosing control unit (See DOSING CONTROL UNIT REMOVAL/INSTALLATION .) (See DOSING CONTROL UNIT INSPECTION .)
12	DEF quality sensor (See DEF QUALITY SENSOR REMOVAL/INSTALLATION .) (See DEF QUALITY SENSOR INSPECTION .)
13	Urea level sensor/Urea temp sensor (See UREA LEVEL SENSOR REMOVAL/INSTALLATION .) (See UREA LEVEL SENSOR INSPECTION .) (See UREA TEMPERATURE SENSOR REMOVAL/INSTALLATION .) (See UREA TEMPERATURE SENSOR INSPECTION .)
