Generator Removal Note

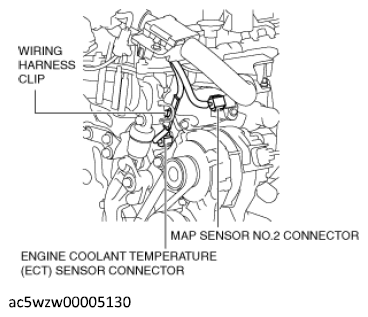

  1. Disconnect the connectors and wiring harness clip shown in the figure.
    G12184513Courtesy of MAZDA MOTORS CORP.

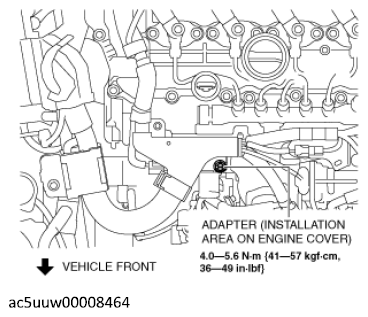

  2. Remove the adapter shown in the figure.
    Fig 1: Adapter And Bolt With Torque Specification
    G12184514Courtesy of MAZDA MOTORS CORP.

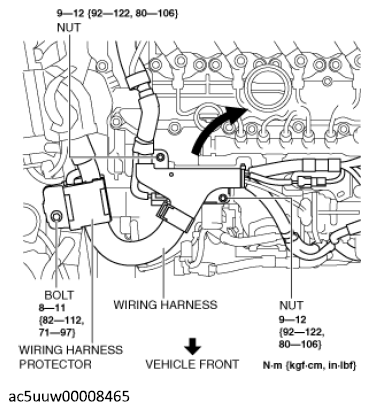

  3. Remove the nuts and bolt shown in the figure and set the wiring harness aside.
    Fig 2: Wiring Harness Protector, Wiring Harness, Nuts And Bolt With Torque Specification
    G12184515Courtesy of MAZDA MOTORS CORP.
  4. Fully loosen the generator lower bolt and pull it outward until it contacts the body frame.
    NOTE:
    • The generator can be removed without fully removing the lower bolt from the engine.
  5. Remove the generator upper bolt.
  6. Remove the generator together with the lower bolt from the engine.

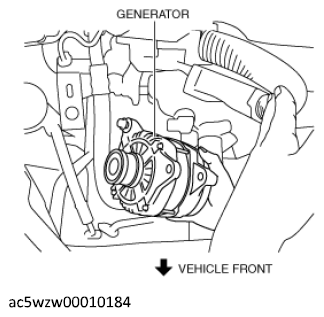

  7. Remove the generator from above the engine compartment.
G12184516Courtesy of MAZDA MOTORS CORP.
