Light Switch

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When removing the light switch, it is necessary to turn the steering wheel. If the ignition is switched off with the driver's door closed, the steering wheel is locked. Perform Steps 1-3 to prevent the steering wheel from being locked.

Switch the ignition ON (engine off or on).
Open the driver's door.
Switch the ignition off.
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity between the light switch terminals is as indicated in the figure.

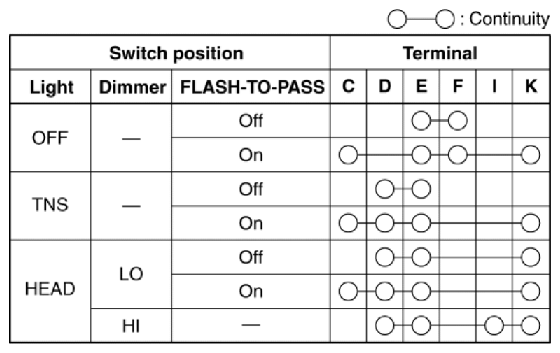

Fig 1: Light Switch Terminal Continuity Chart - Without Auto Light System
Courtesy of MAZDA MOTORS CORP.

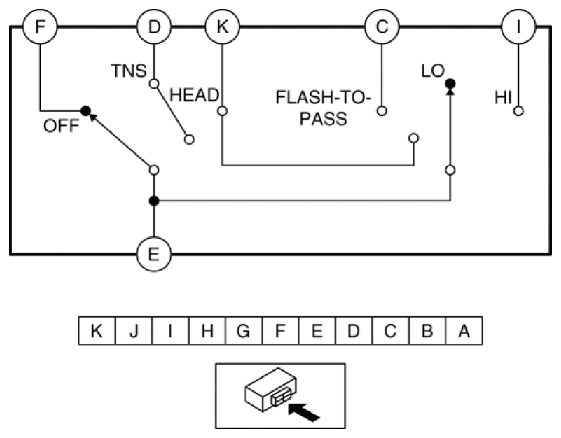

Fig 2: Light Switch Circuit Diagram - Without Auto Light System
Courtesy of MAZDA MOTORS CORP.

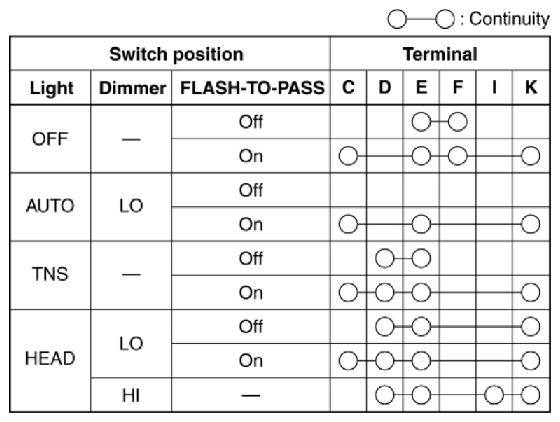

Fig 3: Light Switch Terminal Continuity Chart - With Auto Light System
Courtesy of MAZDA MOTORS CORP.

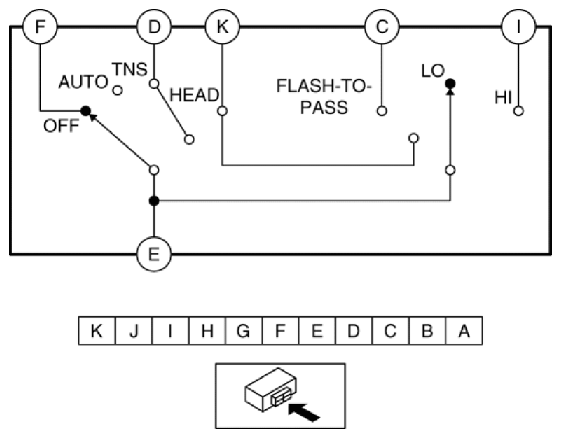

Fig 4: Light Switch Circuit Diagram - With Auto Light System
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the figure, replace the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
