Front map light switch

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
Verify that the continuity between the front map light terminals is as indicated in the figure.

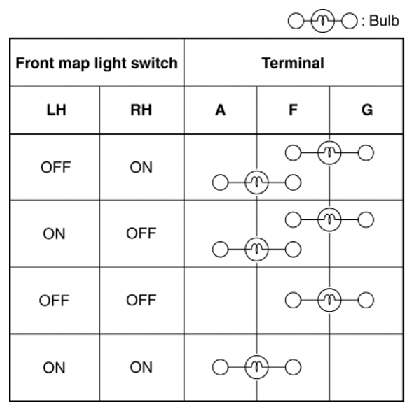

Fig 1: Front Map Light Switch Terminal Continuity Chart
Courtesy of MAZDA MOTORS CORP.

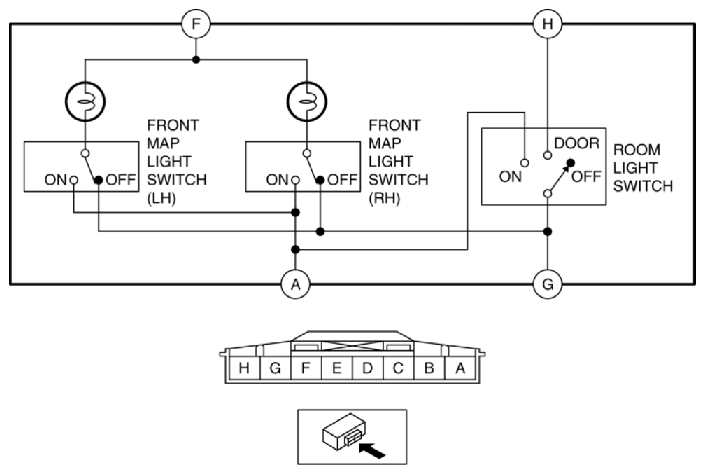

Fig 2: Front Map Light Switch Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the figure, replace the front map light bulb or the front map light. (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION .) (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
