Lower Radiator Hose Component Removal Note

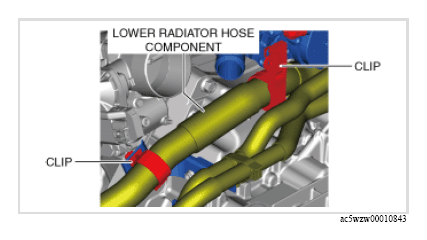

  1. Remove the clips.
    G13149322Courtesy of MAZDA MOTORS CORP.
  2. Remove the nuts shown in the figure and set the lower radiator hose component aside.
G13108167Courtesy of MAZDA MOTORS CORP.
