Auto-Stop Operation Inspection
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

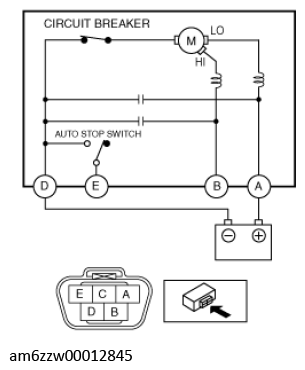

- Connect the battery voltage to windshield wiper motor terminal A, connect the ground to motor terminal D, and operate the windshield wiper motor at low speed.
- Disconnect the battery voltage from terminal A during windshield wiper LO operation, and stop the windshield wiper motor halfway.
- Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Switch the ignition ON (engine off or on).
- After the windshield wiper motor auto-stop operation, verify that it stops at the park position.
- If there is any malfunction, replace the windshield wiper motor. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
