Ignition System Location Index

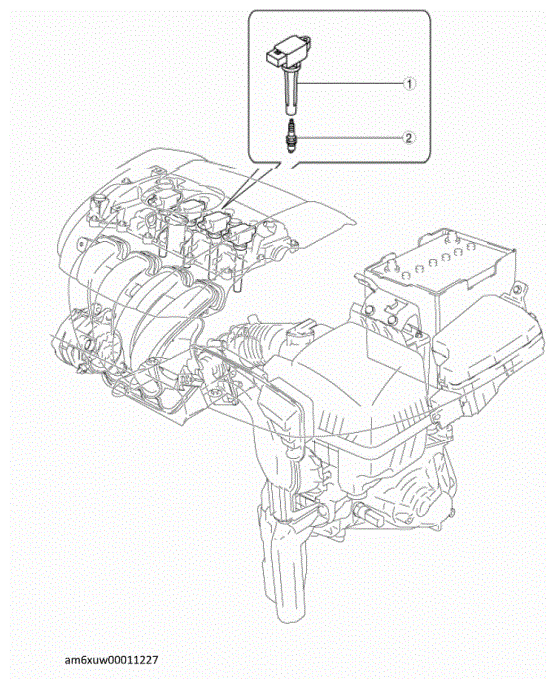

Fig 1: Ignition System Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Ignition coil/ion sensor
2	Spark plug

IGNITION SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION See IGNITION COIL INSPECTION
2	See SPARK PLUG REMOVAL/INSTALLATION See SPARK PLUG INSPECTION
