Ignition Coil/Ion Sensor Removal/Installation

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION (VIN M) .)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal

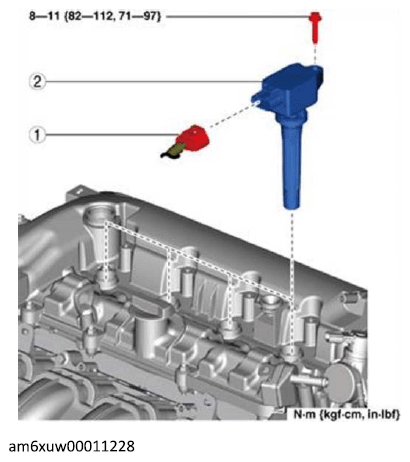

Fig 1: Removing/Installing Ignition Coil/Ion Sensor With Torque Specification

Courtesy of MAZDA MOTORS CORP.
