Fuel Injection Control (+) Signal

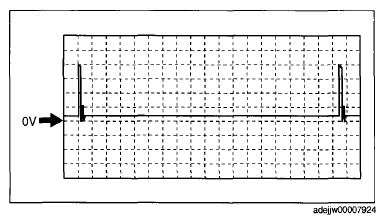

Fig 1: Fuel Injection Control (+) Wave Pattern Signal

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• Fuel Injection No. 1: 1DG (+)-body ground (-)
• Fuel Injection No. 2: 1CY (+)-body ground (-)
• Fuel Injection No. 3: 1CU (+)-body ground (-)
• Fuel Injection No. 4: 1 DC (+)-body ground (-)

Oscilloscope setting

• 10 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
