Front ABS Wheel-Speed Sensor Wiring Harness And Clip Disconnection Note

NOTE:

• Refer to this note only if the disconnection of the front ABS wheel-speed sensor wiring harness and the clip shown in the figure below is required.

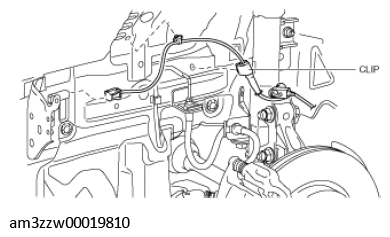

Fig 1: Disconnecting Front ABS Wheel-Speed Sensor Wiring Harness And Clip

Courtesy of MAZDA MOTORS CORP.

1. Insert a flathead screwdriver from the side where there is no notch as shown in the figure below.

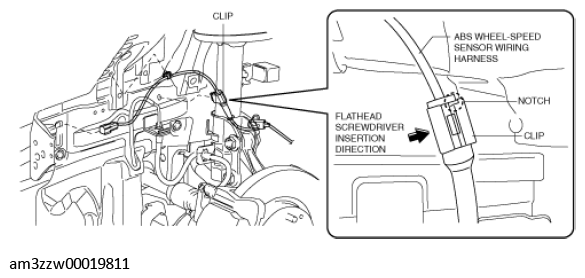

   Fig 2: Inserting Flathead Screwdriver

   Courtesy of MAZDA MOTORS CORP.
2. Detach the tab as shown in the figure below and disconnect the front ABS wheel-speed sensor wiring harness and clip.

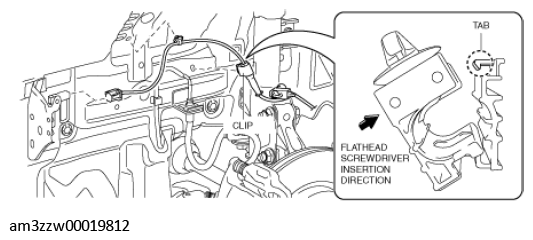

   Fig 3: Disconnecting Front ABS Wheel-Speed Sensor Wiring Harness And Clip

   Courtesy of MAZDA MOTORS CORP.
