DSC HU/CM Connector Installation Note

  1. Connect the connector and pull the lock lever up in the direction of the arrow below.

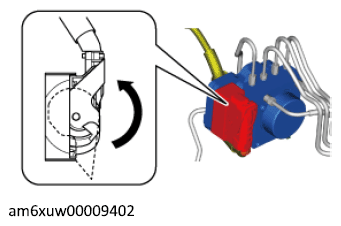

    Fig 1: Pulling Lock Lever Up In Direction
    G12234492Courtesy of MAZDA MOTORS CORP.
  2. After connecting the connector, verify that the connector cover is completely pushed in.
