Trunk Side Pocket Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)
  2. Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION .)
  3. Remove the fasteners. (LH side only)

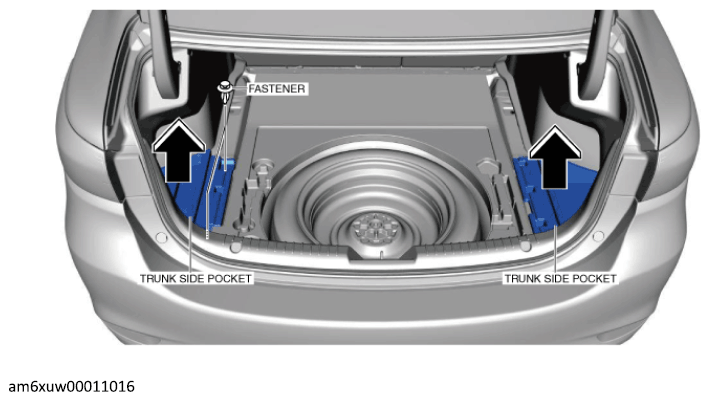

    Fig 1: Trunk Side Pocket
    G12236528Courtesy of MAZDA MOTORS CORP.
  4. Remove the trunk side pocket in the direction of the arrows shown in the figure below.
  5. Install in the reverse order of removal.
