Disassembly/Assembly (Passenger-Side Only)

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

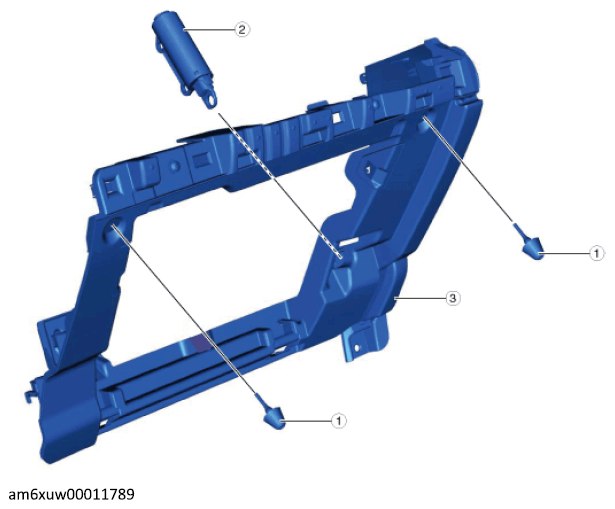

Fig 1: Passenger-Side Lower Panel, Cushion Rubber And Stay Damper

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Cushion rubber
2	Stay damper
3	Passenger-side lower panel

Assemble in the reverse order of disassembly.
