Tie-Rod End Replacement: Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Place alignment marks on the new tie-rod end in the same positions as the removed tie-rod end.

Fig 1: Placing Alignment Marks On Tie-Rod End In Position
Courtesy of MAZDA MOTORS CORP.
Place alignment marks as shown in the figure below for proper installation.

Fig 2: Placing Tie-Rod End Alignment Marks
Courtesy of MAZDA MOTORS CORP.
NOTE:
- "R" is inscribed on the right side of the tie-rod end and "L" is inscribed on the left side of the tie-rod end. Verify if the part is for the left or right side before installation because the left and right parts of the tie-rod end have different shapes.
Fig 3: Tie-Rod End Right Side And Tie-Rod End Left Side
Courtesy of MAZDA MOTORS CORP.
Adjust dimension A shown in the figure below to the standard, then assemble the tie-rod end.

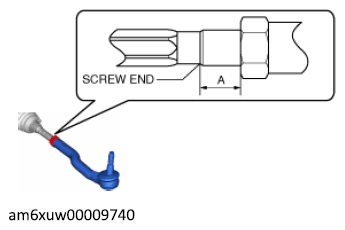

Fig 4: Checking Tie-Rod End Dimension
Courtesy of MAZDA MOTORS CORP.

Standard

14.9-27.9 mm {0.59-1.09 in}
- If not within the specification, make adjustments so that dimension A is within the specification.
Install the tie-rod end to the steering knuckle.

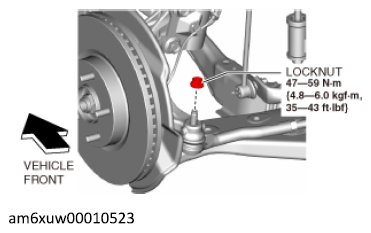

Fig 5: Tie-Rod End To Steering Knuckle
Courtesy of MAZDA MOTORS CORP.
Install a new snap pin to the tie-rod end.

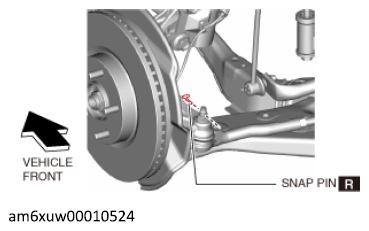

Fig 6: Snap Pin To Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
Install the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
After installation, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)
