Intermediate Shaft Installation Note

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Align the alignment marks on the steering column, which were placed before removing the intermediate shaft, and install the Intermediate shaft.

Fig 1: Intermediate Shaft Alignment Mark On Break
Courtesy of MAZDA MOTORS CORP.
NOTE:
- When newly replacing the intermediate shaft, place alignment marks on the new part in the same position as the removed intermediate shaft.
Install the new joint bolt.

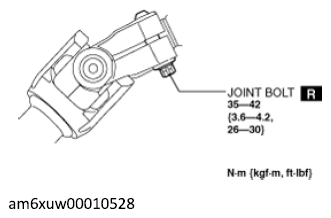

Fig 2: Installing Joint Bolt
Courtesy of MAZDA MOTORS CORP.
Verify that the joint bolt flange is seated in the specified position.

Fig 3: Joint Bolt Flange Seat In Specified Position

Courtesy of MAZDA MOTORS CORP.
