Drive Plate Removal/Installation: Notes

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)

Remove in the order indicated in the table.

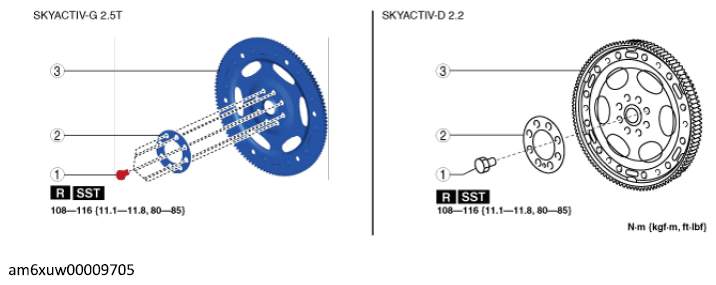

Fig 1: Drive Plate Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Drive plate installation bolts (See Drive Plate Installation Bolts Removal Note .) (See Drive Plate Installation Bolts Installation Note .)
2	Backing plate
3	Drive plate

Install in the reverse order of removal.
