Front Fender Molding Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

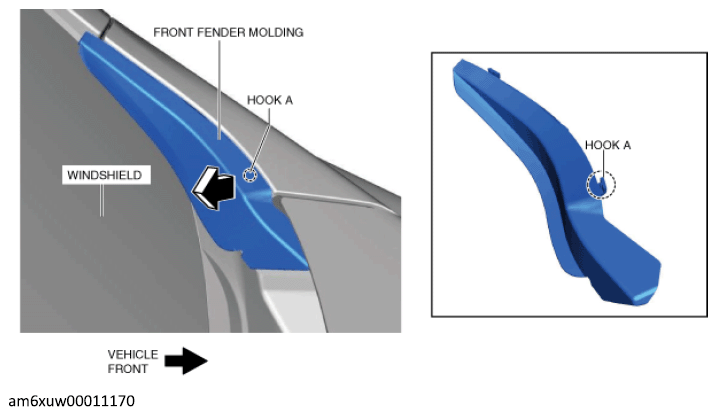

Pull the front fender molding in the direction of the arrow while detaching hook A.

Fig 1: Pulling Front Fender Molding
Courtesy of MAZDA MOTORS CORP.

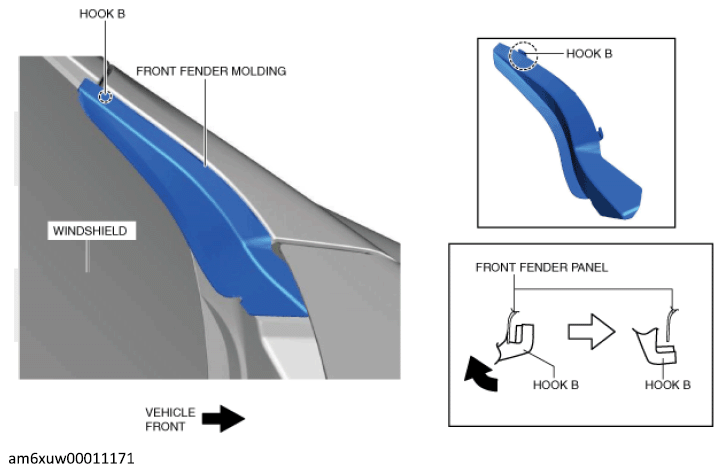

Pull the front fender molding in the direction of the arrow while detaching hook B.

Fig 2: Detaching Hook
Courtesy of MAZDA MOTORS CORP.

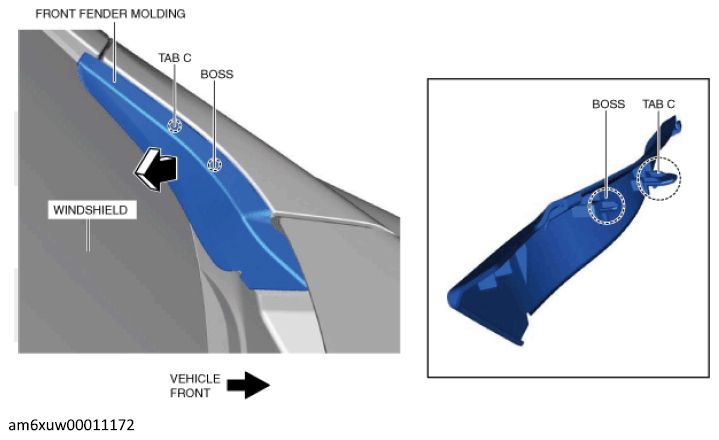

Pull the front fender molding in the direction of the arrow and remove it while detaching tab C and the boss.

Fig 3: Pulling Front Fender Molding
Courtesy of MAZDA MOTORS CORP.
Remove the front fender molding.
Install in the reverse order of removal.
