Electric Variable Valve Timing Motor/Driver Installation Note

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Install a new O-ring to the O-ring installation groove of the engine front cover.
CAUTION:
- To prevent damage to the electric variable valve timing motor/driver, be careful not to perform the following.
- Do not apply force of more than 100 N {10.2 kgf, 22.5 lbf} to the shaded area in figure below and connector

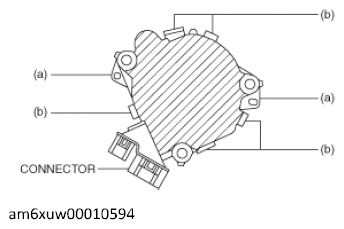

  Fig 1: Electric Variable Valve Timing Motor/Driver Shaded Area And Connector
  Courtesy of MAZDA MOTORS CORP.
- Do not deform areas
- Do not loosen areas (b) (crimp-tightened area) in figure below
- Do not handle electric variable valve timing motor/driver while holding only connector
- Do not touch connector terminal
Install the electric variable valve timing motor/driver using the following procedures.
NOTE:
- The eccentric shaft on the electric variable valve timing actuator side can be rotated to the left and right.
Fig 2: Rotating Eccentric Shaft On Electric Variable Valve Timing Actuator Side Left And Right
Courtesy of MAZDA MOTORS CORP.
- The electric variable valve timing motor/driver can be assembled with the joint groove of the eccentric shaft in any position, and it will not lead to vehicle damage or performance reduction.
1. Before installation, rotate the joint on the end of the electric variable valve timing motor so that it is aligned to the joint groove on the electric variable valve timing actuator side.

  Fig 3: Rotating Joint On End Of Electric Variable Valve Timing Motor
  Courtesy of MAZDA MOTORS CORP.
2. Engage the joint on the end of the electric variable valve timing motor with the joint groove on the electric variable valve timing actuator side.
3. Attach the seal surface.
4. Tighten the electric variable valve timing motor/driver installation bolts.
  Tightening torque

  20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
