Hydraulic Variable Valve Timing Control Signal

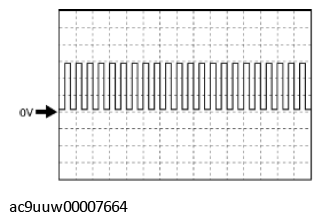

Fig 1: Hydraulic Variable Valve Timing Control Output Voltage Signal Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1AS(+)-body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Racing (Engine speed 3, 500 rpm)
