Electric Variable Valve Timing Motor (Rotation Pulse) Signal

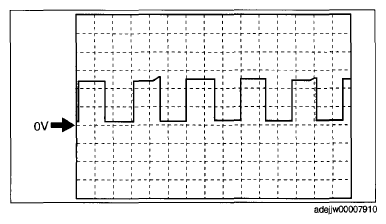

Fig 1: Electric Variable Valve Timing Motor (Rotation Pulse) Output Voltage Signal Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 11(+)-body ground(-)

Oscilloscope setting

• 2 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Idle (after warm up)
