Electric Variable Valve Timing Driver (Diagnostic) Signal

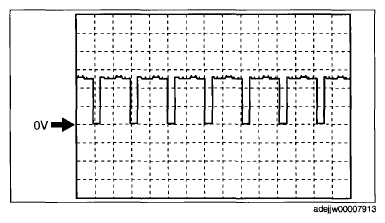

Fig 1: Electric Variable Valve Timing Driver (Diagnostic) Output Voltage Signal Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1P(+)-body ground(-)

Oscilloscope setting

• 2 V/DIV (Y), 100 ms/DIV (X), DC range

Vehicle condition

• Idle (after warm up)
