SKYACTIV-G 2.5

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. While pressing the main fuse cover tab in the direction of the arrow (1) shown in the figure below, lift up the main fuse cover in the direction of the arrow (2) to detach the main fuse cover tab from the main fuse.

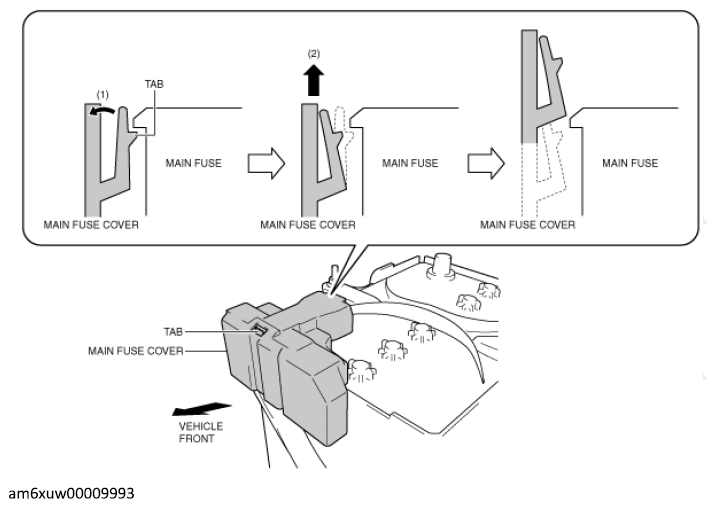

    Fig 1: Pressing Main Fuse Cover Tab
    G12237500Courtesy of MAZDA MOTORS CORP.
  3. Remove the main fuse cover.
  4. Remove the nuts.

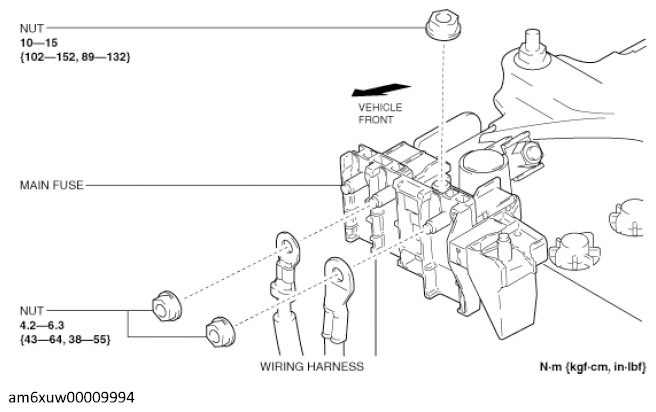

    Fig 2: Main Fuse, Wiring Harness And Nuts With Torque Specification
    G12237501Courtesy of MAZDA MOTORS CORP.
  5. Remove the main fuse.
  6. Install in the reverse order of removal.
