On-Board Diagnostic Wiring Diagram (Blind Spot Monitoring (BSM) Control Module)
On-Board Diagnostic Wiring Diagram (Blind Spot Monitoring (BSM) Control Module)

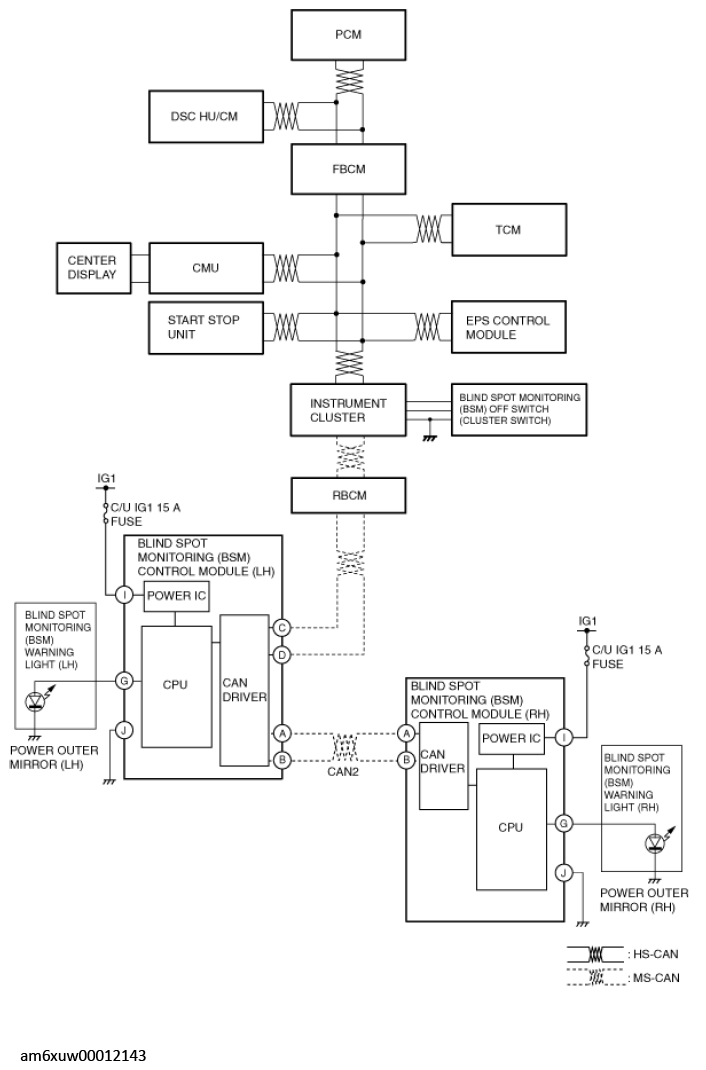

Fig 1: On-Board Diagnostic Wiring Diagram - Blind Spot Monitoring Control Module
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
