DTC B12C0-00: Side Camera (LH) Malfunction: Notes
DTC B12C0:00 (360° VIEW MONITOR CONTROLE MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Side Camera (LH) Malfunction |
| Detection condition |
- The 360°view monitor control module detects an input error from the side camera (LH).
|
| Fail-safe |
- Switches side camera (LH) image to black screen
|
| Possible cause |
- 360°view monitor control module connector or terminal malfunction
- Side camera (LH) connector or terminal malfunction

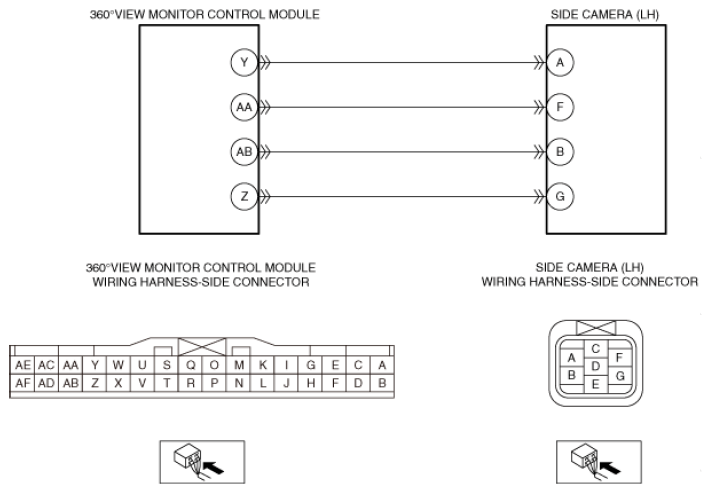

- Short to ground in wiring harness between the following terminals:
- 360°view monitor control module terminal AA-Side camera (LH) terminal F
- Short to power supply in wiring harness between the following terminals:
- 360°view monitor control module terminal AA-Side camera (LH) terminal F
- Open circuit in wiring harness between the following terminals:
- 360°view monitor control module terminal AA-Side camera (LH) terminal F
- Side camera (LH) malfunction
- 360°view monitor control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
