Steering Gear And Linkage Assembly: Notes

CAUTION:

• To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.

1. Assemble in the order shown in the figure below below.
2. Install the steering gear and linkage to the front crossmember. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)

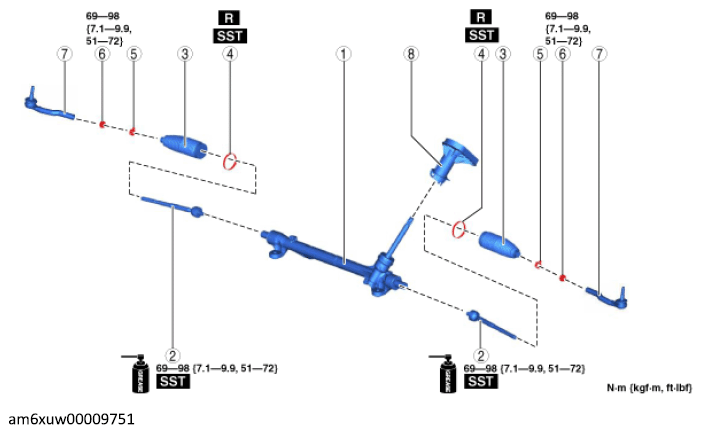

Fig 1: Steering Gear And Linkage Assembly Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Steering gear
2	Tie Rod (See Tie Rod Assembly Note .)
3	Boot
4	Boot band (See Boot Band Assembly Note .)
5	Boot clamp
6	Locknut
7	Tie-rod end (See Tie-rod End Assembly Note .)
8	Dust cover
