Structural View

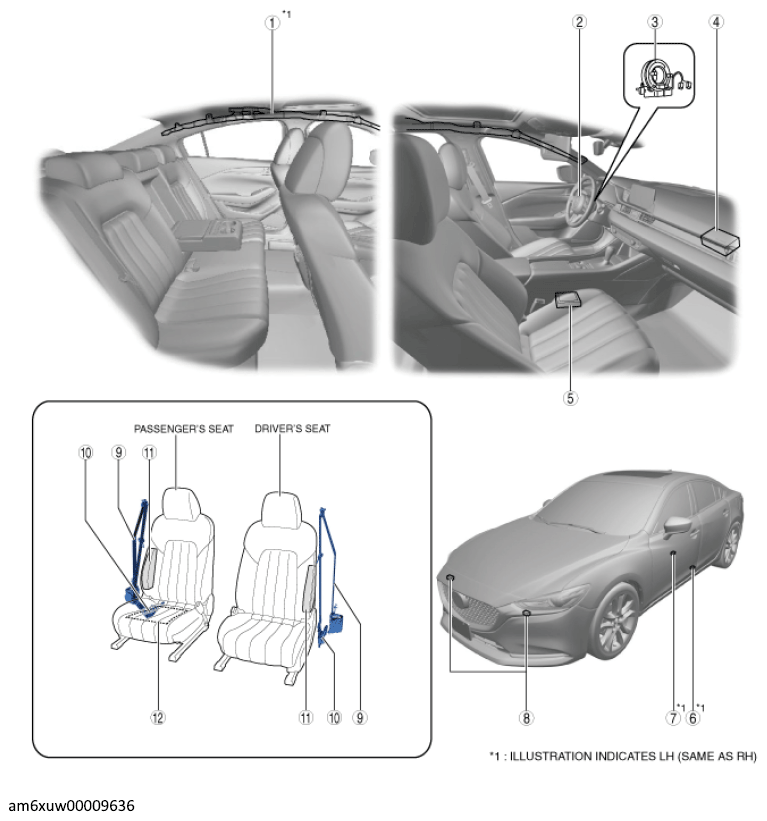

Fig 1: Air Bag System Components Location

Courtesy of MAZDA MOTORS CORP.

AIR BAG SYSTEM COMPONENT OPERATIONS (STRUCTURAL VIEW)

Component No.	Refer to
1	Curtain Air Bag Module See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.) See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)
2	Driver-Side Air Bag Module See DRIVER-SIDE AIR BAG MODULE REMOVAL (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.) See DRIVER-SIDE AIR BAG MODULE INSTALLATION (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.) See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)
3	Clock Spring See CLOCK SPRING REMOVAL/INSTALLATION (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.) See CLOCK SPRING ADJUSTMENT (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.) See CLOCK SPRING INSPECTION (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)
4	Passenger-Side Air Bag Module See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.) See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)
5	SAS Control Module See SAS CONTROL MODULE REMOVAL/INSTALLATION (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.) See SAS CONTROL MODULE CONFIGURATION (USING READ/WRITE FUNCTION) (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.) See SAS CONTROL MODULE CONFIGURATION (USING AS-BUILT DATA) (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)
6	Side Air Bag Sensor See SIDE AIR BAG SENSOR REMOVAL/INSTALLATION (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)
7	Pressure Sensor See PRESSURE SENSOR REMOVAL/INSTALLATION (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)
8	Crash Zone Sensor See CRASH ZONE SENSOR REMOVAL/INSTALLATION (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)
9	Pre-Tensioner Seat Belt See FRONT SEAT BELT REMOVAL/INSTALLATION See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)
10	Lap Pre-Tensioner Seat Belt See FRONT SEAT BELT REMOVAL/INSTALLATION See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)
11	Side Air Bag Module See SIDE AIR BAG MODULE REMOVAL/INSTALLATION (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.) See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)
12	Occupant Classification Sensor See OCCUPANT CLASSIFICATION SENSOR REMOVAL/INSTALLATION (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.) See OCCUPANT CLASSIFICATION SENSOR CALIBRATION (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.) See OCCUPANT CLASSIFICATION SENSOR INSPECTION (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)
