Switch The Power Supply Using The Push Button Start And Start The Engine

• The power supply switch using the push button start is performed by depressing the clutch pedal (MTX), depressing the brake pedal (ATX), and then pressing the push button start.

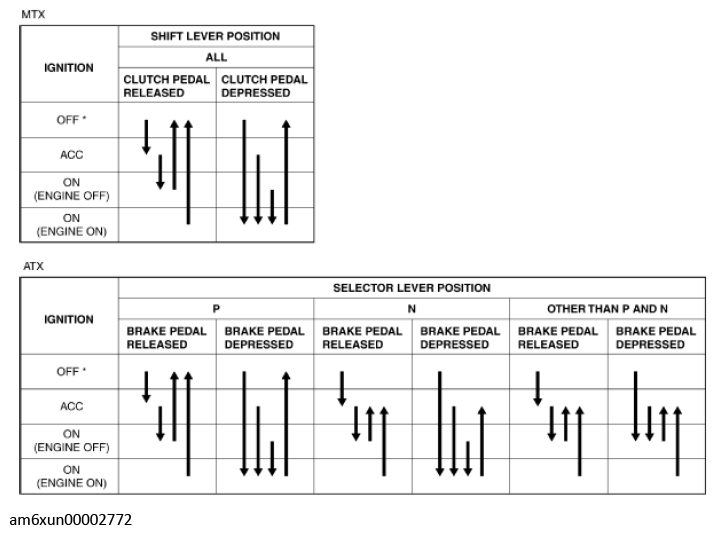

Fig 1: Switching Power Supply Using MTX, ATX And Push Button Start

Courtesy of MAZDA MOTORS CORP.

*: To switch the ignition to ACC or off from ON (engine on), a vehicle speed of 5 km/h {3 mph} or less is required.
