DTC B118D-11: Blind Spot Monitoring (BSM) Warning Light (RH) Circuit Malfunction: Notes
DTC B118D:11 BLIND SPOT MONITORING (BSM) CONTROL MODULE DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Blind Spot Monitoring (BSM) Warning Light (RH) Circuit Malfunction |
| Detection condition |
- Blind spot monitoring (BSM) control module (RH) performs measurement at 0.01 s intervals and a short to ground in the blind spot monitoring (BSM) warning light (RH) circuit is detected 48 times continuously.
|
| Fail-safe |
- Blind spot monitoring (BSM) system is stopped.
|
| Possible cause |
- Blind spot monitoring (BSM) warning light (RH) connector or terminal malfunction
- Blind spot monitoring (BSM) control module (RH) connector or terminal malfunction

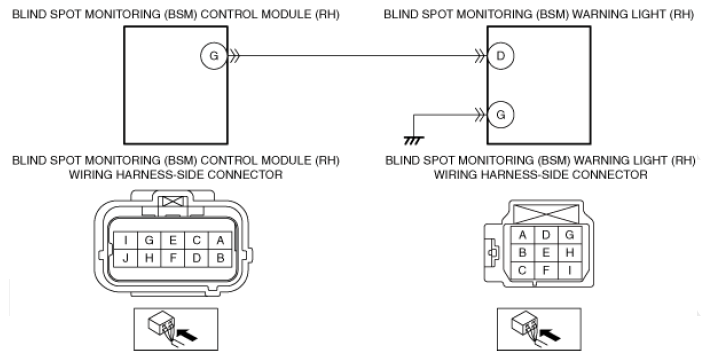

- Short to ground in wiring harness between blind spot monitoring (BSM) control module (RH) terminal G and blind spot monitoring (BSM) warning light (RH) terminal D
- Blind spot monitoring (BSM) warning light (RH) malfunction
- Blind spot monitoring (BSM) control module (RH) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
