DTC B108C-24: Push Button Start Switch 2 Circuit Malfunction: Notes
DTC B108C:24 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Push Button Start Switch 2 Circuit Malfunction |
| Detection condition |
- Start stop unit detects that the push button start switch 2 is kept condition 5 times or more even though the push button start switch
|
| Fail-safe |
Not applicable |
| Possible cause |
- Push button start connector or terminal malfunction

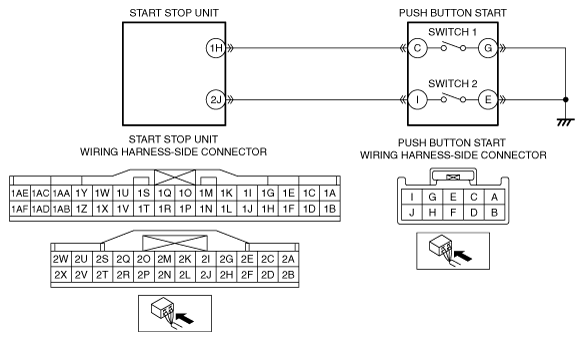

- Open circuit in wiring harness between push button start terminal E and body ground
- Start stop unit connector or terminal malfunction
- Open circuit in wiring harness between start stop unit terminal 2J and push button start terminal I
- Push button start switch 2 malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
