DTC B108B-24: Push Button Start Switch 1 Circuit Malfunction: Notes
DTC B108B:24 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Push Button Start Switch 1 Circuit Malfunction |
| Detection condition |
- Start stop unit detects that the push button start switch 1 is kept condition 5 times or more even though the push button start switch
|
| Fail-safe |
Not applicable |
| Possible cause |
- Push button start connector or terminal malfunction

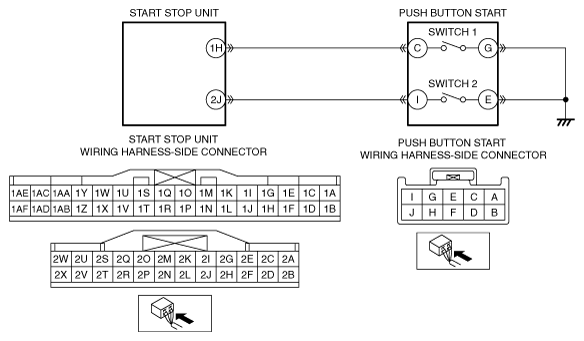

- Open circuit in wiring harness between push button start terminal G and body ground
- Start stop unit connector or terminal malfunction
- Open circuit in wiring harness between start stop unit terminal 1H and push button start terminal C
- Push button start switch 1 malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
