DTC B108B-23: Push Button Start Switch 1 Circuit Malfunction: Notes
DTC B108B:23 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Push Button Start Switch 1 Circuit Malfunction |
| Detection condition |
- Start stop unit detects that the push button start switch 1 is stuck < 120 s or more.
|
| Fail-safe |
- Perform the control with the push button start switch 1 turned off.
|
| Possible cause |
- Push button start connector or terminal malfunction
- Start stop unit connector or terminal malfunction

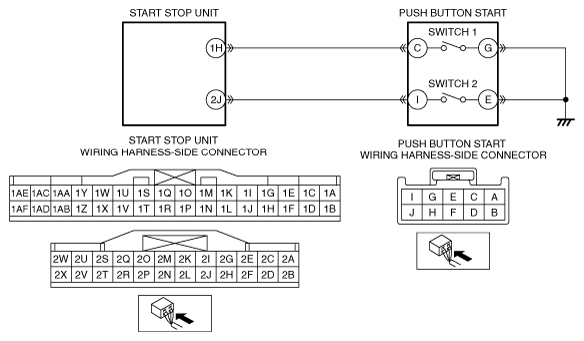

- Short to ground in wiring harness between start stop unit terminal 1H and push button start terminal C
- Push button start switch 1 malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
