Ignition System Location Index

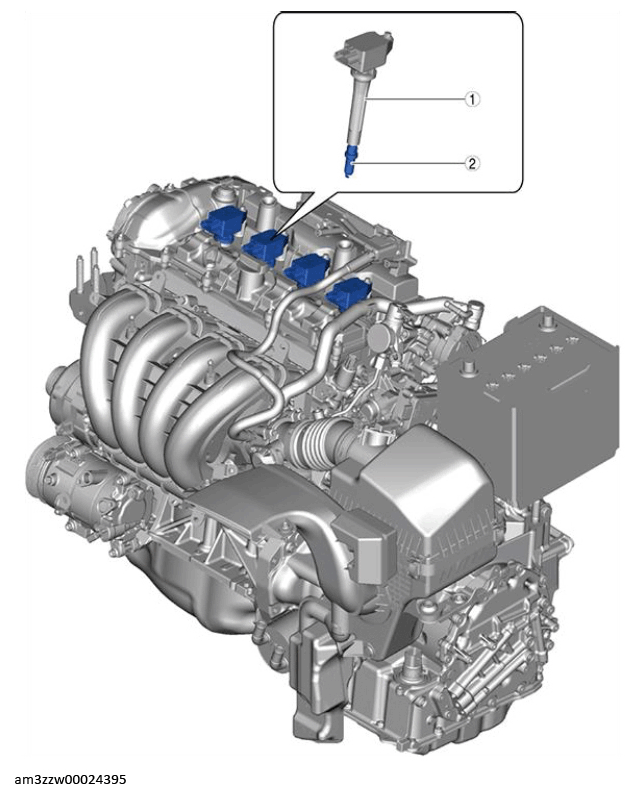

G13175355Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Ignition coil/ion sensor
(See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION .)
(See IGNITION COIL INSPECTION .)
2 Spark plug
(See SPARK PLUG REMOVAL/INSTALLATION .)
(See SPARK PLUG INSPECTION .)
