Pcm Inspection
>>
Inspection Using An Oscilloscope (Reference)
>>

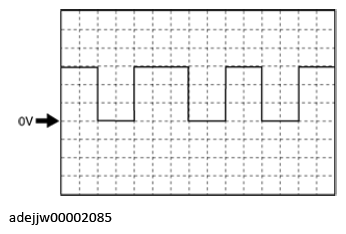

Engine oil control signal
Engine oil control signal
Courtesy of MAZDA MOTORS CORP.
PCM terminals
1CK (+) - body ground (-)
Oscilloscope setting
5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
Courtesy of MAZDA MOTORS CORP.
