Center Accessory Socket Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the center accessory socket. (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .).

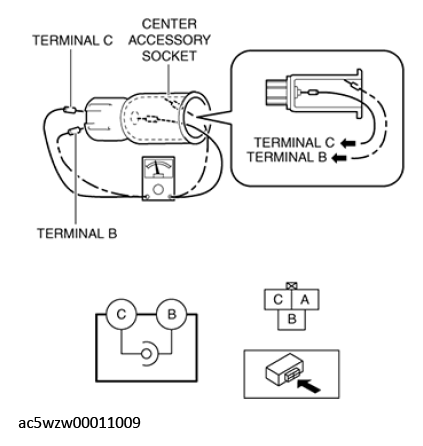

  3. Connect the tester probe to the position shown in the figure and verify that there is continuity.
    G13179875Courtesy of MAZDA MOTORS CORP.
    G13179876Courtesy of MAZDA MOTORS CORP.
