Setting function

Bluetooth® pairing

• Pairing of a Bluetooth®-enabled device can be performed.

Clock settings

• The following items can be set using the clock setting.

Item	Content
Manual Time Adjustment	Displays the currently set time. When + is selected, the time/minute s move forward, and when - is selected, the time/minute s move back. AM/PM selection is only possible during 12-hour clock time display.
GPS Time Synchronization	Synchronizes to the GPS time. NOTE: When GPS sync is selected "Adjust Time" can not be selected
24-Hour Clock	Changes the display between 12 and 24-hour clock time.
Daylight Saving Time	Enables or disables daylight saving time.
Time Zone	Selects the time zone.

Driver settings

• The following items can be set using the driver setting.

Item	Content
Driver Selection	Manually selects the desired driver.

Item	Content
Edit Driver Name(s)	Edits the name of the selected driver.

Voice Recognition Settings

• Configures voice recognition and voice guidance settings.

Item	Content
Guidance Volume	Adjusts the volume of the Voice Guidance responses.
Guidance Length	Selects the length of Voice Guidance responses.
Barge-In	Allows user to interrupt with desired commands during Voice Guidance responses.

System setting

• The following items can be set using the system setting.

Item	Content
Language	The language can be changed.
Temp	Switches temperature unit between °F/°C (1)
Distance/Speed	The distance unit can be switched between miles/km(2).
Fuel Efficiency	Selects the desired unit of expression for fuel efficiency.
Pressure	Selects the desired unit of air pressure.
Gracenote Database Update	Gracenote is updated.
Use Gracenote Database Album Art	Utilizes Gracenote Database for displayed Album Art.
System Information	Displays system software information.
Restore All Factory Settings	Settings other than sound are reset to the factory settings.
(1) When the temperature unit is changed using Temp, the displayed unit on the climate control unit (dial type) also changes simultaneously. (2) When the distance unit is changed using Distance, the displayed unit in the instrument cluster also changes simultaneously.

Display setting

• The following items can be set using the display setting.

Item	Content
Display Off	Turns off the center display screen.
Day/Night Mode	Selects the center display brightness mode.
Brightness	Adjusts the display brightness.
Contrast	Adjusts the display contrast.
Show Drive Results at Ignition Off	Provides energy efficiency results at the end of the drive.
Home Screen Clock	Selects the clock style displayed on the Home screen.
Ambient Display	Enables a simplified interface accessible from the Home screen.
Restore Factory Settings	Resets the display to the factory settings.

Sound settings

• The following settings are available for the sound quality.

Item	Content
Sound Adjustment Mode (Selects a Basic or Advanced sound adjustment)	Basic/Advanced
Bass (Bass adjustment)	+ Side: Increased bass - Side: Decreased bass
Treble (Treble adjustment)	+ Side: Increased treble - Side: Decreased treble
Equalizer (Selects or creates the desired equalizer curve)	Flat/Pop/Rock/Jazz/R&B/Classical/Custom1/Custom2/Custom3/Customize EQ
Listening Position (Selects the desired listening position)	Driver's Seat/All Seats
Fade (Front/rear volume adjustment)	Front side: Front speaker volume decrease Rear side: Rear speaker volume decrease
Balance (Left/right volume adjustment)	Left side: Increase left side speaker volume Right side: Right side speaker volume increase
ALC(1) (Auto volume adjustment)	OFF/Level 1/Level 2/Level 3/Level 4/Level 5/Level 6/Level 7
Automatic Source Level Adjustment (Automatically stabilizes volume levels across sources)	Enable/Disable
Bose® Stereo Mode (Selects the desired stereo listening experience)	Standard/Li near
Bose® Centerpoint(2) (Automatic surround level adjustment)	OFF/Level 1/Level 2/Level 3
Bose® AudioPilot(2) (Automatic volume adjustment)	OFF/Level 1/Level 2/Level 3
(1) Without Bose® (2) With Bose®

Vehicle notification and warning volume

• Adjusts the alert volume for notifications and warnings.

Content
Low/Moderate/High

Volume setting

• The volume can be adjusted by operating the volume dial on the command switch or the volume button on the steering switch.

Personalization feature setting

• The following personalization settings for the system can be changed using the center display. For details, refer to the each system personalization feature.

Bluetooth® pairing

1. When the CMU receives the operation signal/detects the switch operation, it transmits a search signal to a Bluetooth® enabled device near the CMU and sends (1) the Bluetooth®-device search screen signal to the center display.
2. The Bluetooth®-enabled device near the CMU sends (2) a Bluetooth® device signal to the CMU. In addition, the center display displays (2) the Bluetooth® device search screen.
3. The CMU programs (3) the Bluetooth®-enabled device information based on the Bluetooth® device signal.
   NOTE:

   • In the following cases, Bluetooth® pairing is canceled.
     • Eight (maximum of 7) Bluetooth® devices have been programmed
     • Bluetooth® device signal is not received during period of 180 s
     • Cancel is selected during Bluetooth® device search screen display

Courtesy of MAZDA MOTORS CORP.

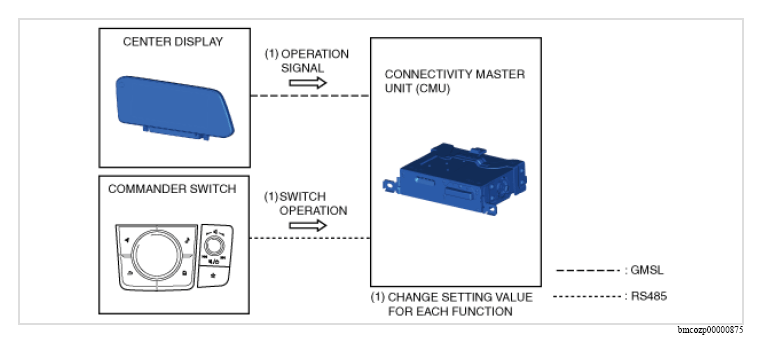

System/screen/clock settings

1. When the ACU receives the operation signal/detects (1) the switch operation, it changes (1) each function setting based on the information from the user operations.

Courtesy of MAZDA MOTORS CORP.

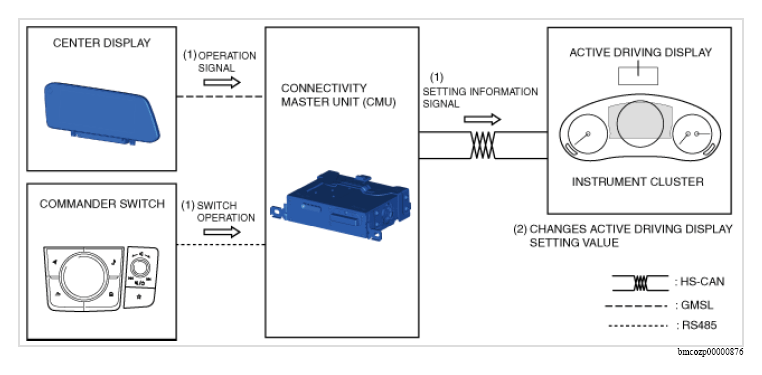

Active driving display setting

1. When an operation signal is received/switch operation is detected (1), the CMU sends (1) a setting information signal to the instrument cluster based on the information from the user operations.
2. The instrument cluster changes (2) the setting value of the active driving display based on the setting information signal.

Courtesy of MAZDA MOTORS CORP.

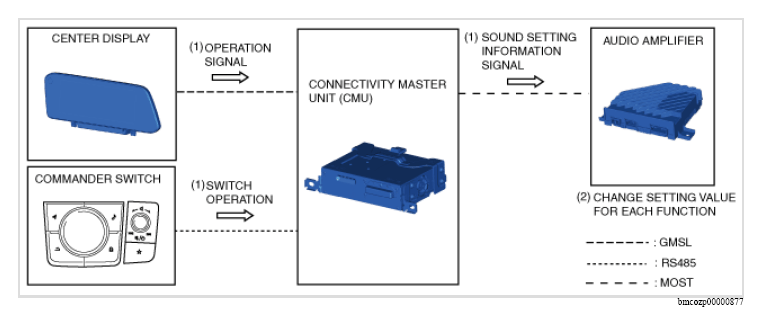

Sound setting (sound quality setting/volume setting)

1. When an operation signal is received/switch operation is detected (1), the CMU sends (1) a sound setting information signal to the audio amplifier based on the information from the user operations.
2. The audio amplifier changes (2) the setting value for each function based on the received sound setting information signal.

Courtesy of MAZDA MOTORS CORP.

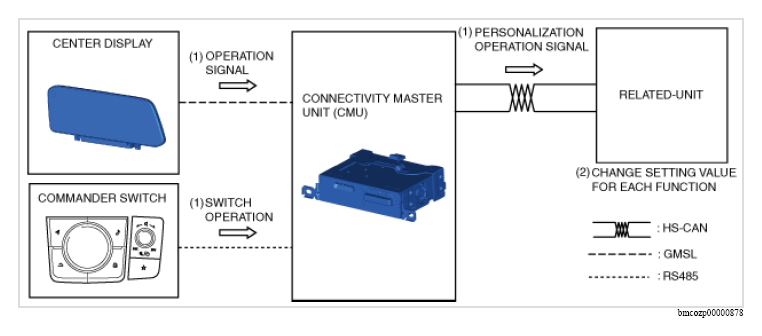

Personalization feature setting

1. When an operation signal is received/switch operation is detected (1), the CMU sends (1) a personalization operation signal to the related units based on the personalization setting information set by the user.
2. The related unit changes (2) each function setting based on the personalization operation signal.

Courtesy of MAZDA MOTORS CORP.

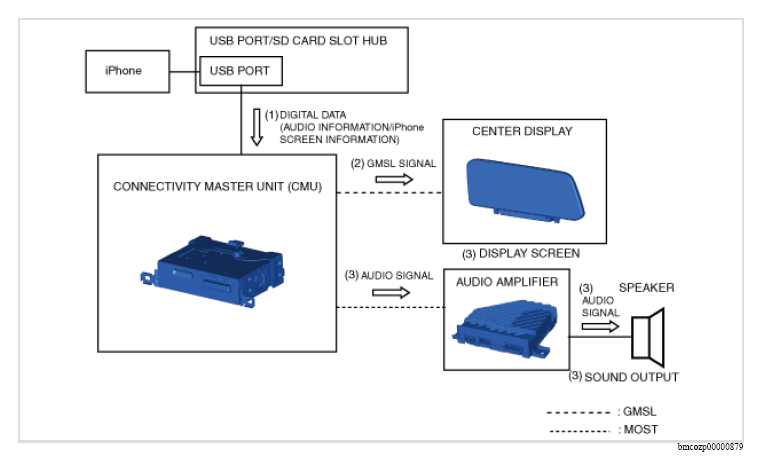

Apple CarPlay™

1. The USB port/SD card slot hub sends (1) the digital data (audio information/iPhone® screen information) of the iPhone® connected to the USB port to the CMU.
2. From the received digital data, the CMU converts the screen information to an GMSL signal and sends (2) it to the center display.
3. The center display indicates (3) the screen information based on the GMSL signal received from the CMU. In addition, the CMU sends (3) the audio signal to the speakers and the speakers output (3) the audio based on the received audio signal.
   NOTE:

   • Apple CarPlay™ can be used only when iPhone® is connected to USB1 (USB port indicated by 1 mark) of the USB port/SD card slot hub.

Courtesy of MAZDA MOTORS CORP.

Android Auto™

1. The USB port/SD card slot hub sends (1) the digital data (audio information/Android™ screen information) of the Android™ connected to the USB port to the CMU.
2. From the received digital data, the CMU converts the screen information to an GMSL signal and sends (2) it to the center display.
3. The center display indicates (3) the screen information based on the GMSL signal received from the CMU. In addition, the CMU sends (3) the audio signal to the speakers and the speakers output (3) the audio based on the received audio signal.
   NOTE:

   • Android Auto™ can be used only when Android™ is connected to USB1 (USB port indicated by 1 mark) of the USB port/SD card slot hub.

Courtesy of MAZDA MOTORS CORP.

Application function

Fuel efficiency monitor

• For details on the fuel efficiency monitor operation, refer to the fuel efficiency monitor of the [CENTER DISPLAY.] (See CENTER DISPLAY  [(E)].)

Vehicle status monitor

• For details on the vehicle status monitor operation, refer to the [CENTER DISPLAY.] (See CENTER DISPLAY  [(E)].)
