Ignition Coil/Ion Sensor Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))] .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

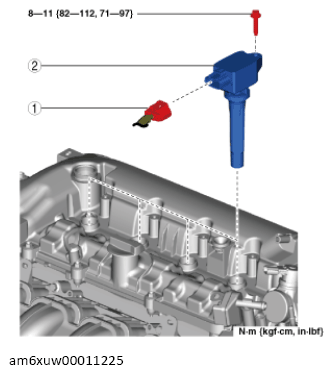

Fig 1: Ignition Coil/Ion Sensor Components With Torque Specification
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Connector

2 Ignition coil/ion sensor

1	Connector
2	Ignition coil/ion sensor
