Clip Replacement Note

NOTE:
  • If the clip has been damaged, perform the following procedure.

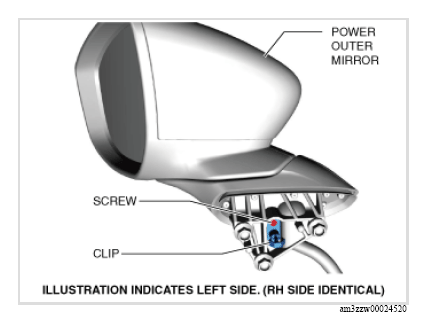

  1. Remove the screw.
    G13178685Courtesy of MAZDA MOTORS CORP.
  2. Remove the clip.
  3. Install in the reverse order of removal.
