Transaxle mounting bolt removal note

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • Remove the manual transaxle carefully, holding it steady. If the manual transaxle falls it could be damaged or cause injury.
  1. Adjust the SST and lean the engine toward the manual transaxle.
    G13176418Courtesy of MAZDA MOTORS CORP.
  2. Support the manual transaxle on a jack.
    G09759417Courtesy of MAZDA MOTORS CORP.

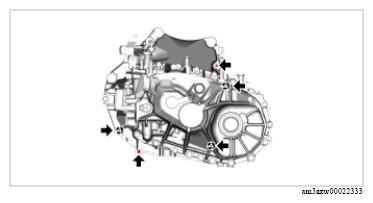

  3. Remove the transaxle mounting bolts (lower side).
    G13176424Courtesy of MAZDA MOTORS CORP.
  4. Remove the manual transaxle.
