Manual Transaxle Oil Replacement

Replacement Part

Oil and Chemical Type

1. Park the vehicle on level ground.
2. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
3. Remove the drain plug and gasket, and drain the manual transaxle oil.

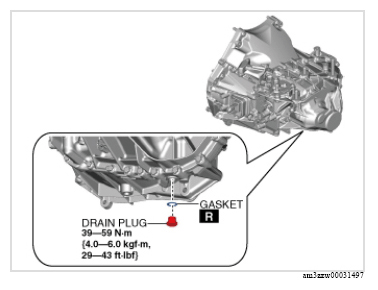

   Fig 1: Drain Plug With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
4. Install a new gasket and the drain plug.

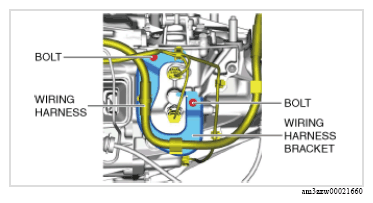

5. Remove the bolts and set the wiring harness and wiring harness bracket in a place which does not interfere with servicing.

   Courtesy of MAZDA MOTORS CORP.

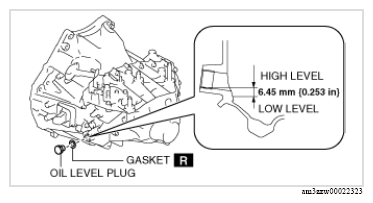

6. Remove the oil level plug and gasket.

   Courtesy of MAZDA MOTORS CORP.

7. Add the specified manual transaxle oil through the oil level plug port.

   Specified manual transaxle oil	Engine type	Manual transaxle oil capacity (approx. quantity)
   MAZDA LONG LIFE GEAR OIL G7	SKYACTIV-G 2.0	1.70 L {1.80 US qt, 1.50 Imp qt}
   	SKYACTIV-G 2.5	1.65 L {1.74 US qt, 1.45 Imp qt}

8. Install a new gasket and the oil level plug.

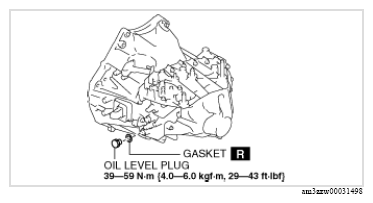

   Fig 2: Oil Level Plug With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
9. Connect the wiring harness bracket to the manual transaxle.

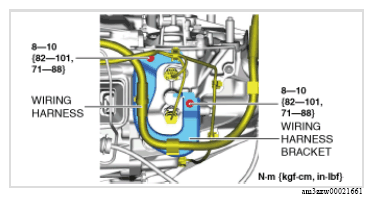

   Fig 3: Wiring Harness Bracket Bolts With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
10. Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
