Manual Transaxle Oil Inspection

WARNING: This page is about a different variant/trim than selected.

Replacement Part

Gasket

Quantity: 1

Location of use: Oil level plug

Oil and Chemical Type

Manual transaxle oil
Type: MAZDA LONG LIFE GEAR OIL G7

Park the vehicle on level ground.
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)

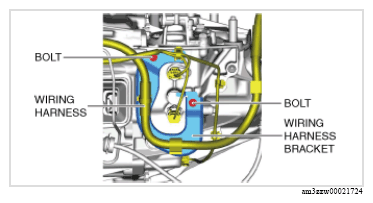

Remove the bolts and set the wiring harness and wiring harness bracket in a place which does not interfere with servicing.

Courtesy of MAZDA MOTORS CORP.
Remove the oil level plug and gasket.

Courtesy of MAZDA MOTORS CORP.

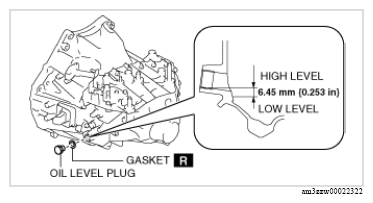

Verify that the manual transaxle oil is within the range shown in the figure.
- If it is not within the range, adjust the manual transaxle oil level.
Specified manual transaxle oil

MAZDA LONG LIFE GEAR OIL G7
Install a new gasket and the oil level plug.

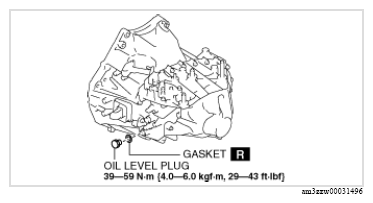

Fig 1: Oil Level Plug With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Connect the wiring harness bracket to the manual transaxle.

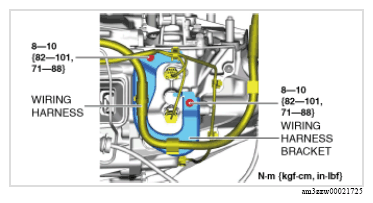

Fig 2: Wiring Harness Bracket Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
