A/C Is Always On Or A/C Compressor Runs Continuously [SKYACTIV-G]: Notes

A/C IS ALWAYS ON OR A/C COMPRESSOR RUNS CONTINUOUSLY [SKYACTIV-G] DETECTION CONDITION AND POSSIBLE CAUSE

Troubleshooting item	A/C is always on or A/C compressor runs continuously
Description	A/C compressor magnetic clutch does not disengage.

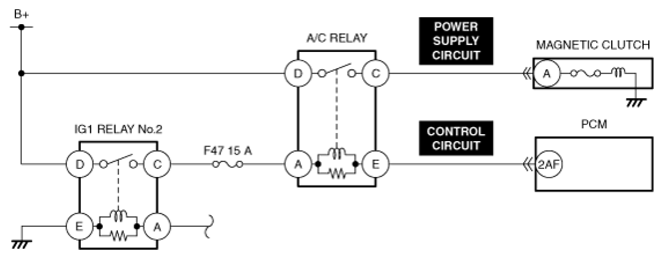

Possible cause	PCM, body control module (BCM) or dash-electrical supply unit DTC is stored Short to power supply in magnetic clutch power supply circuit Magnetic clutch engagement is stuck Climate control unit malfunction (Climate control unit always transmits A/C request signal) A/C relay is stuck closed Short to ground in A/C relay control circuit
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.	Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
